Empowering Your Dental Laboratory
Technical Data
Specifications
Dentin Zone
| Material | 4Y-TZP |
| Strength | 1200 MPa |
| Translucency | 43% |
Incisal Zone
| Material | 5Y-TZP |
| Strength | 800 MPa |
| Translucency | 49% |
| Parameter | Value |
|---|---|

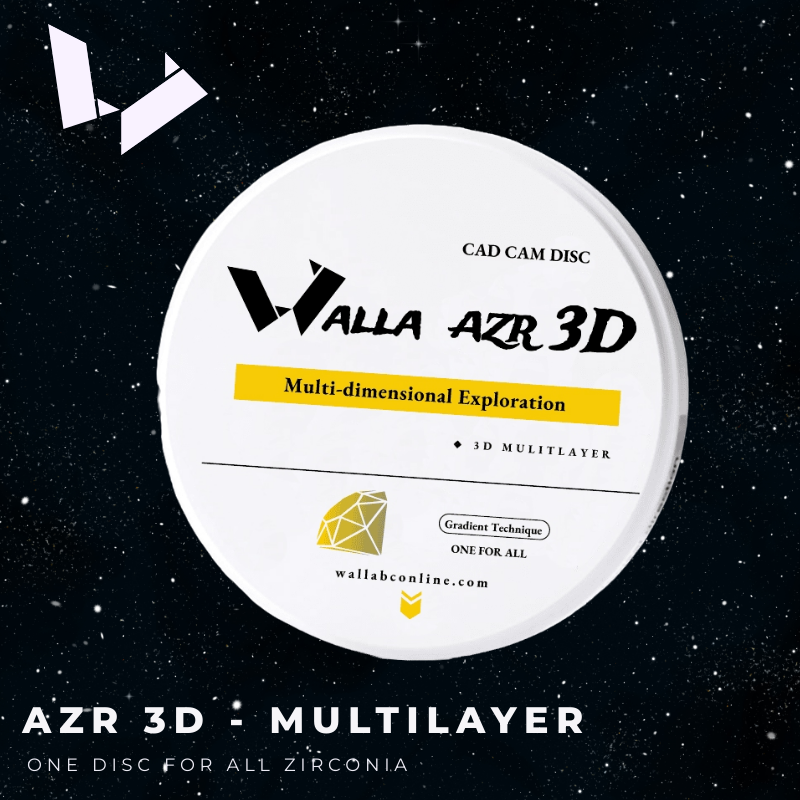

| Product Name | AZR 3D — Multi-dimensional Exploration Zirconia Milling Disc |
| Disc Structure | 3D Multilayer — Gradient Technique; dual-material construction (4Y-TZP + 5Y-TZP) |
| Flexural Strength | Dentin: 1200 MPa · Incisal: 800 MPa |
| Translucency | Dentin: 43% · Incisal: 49% |
| Shade System | VITA 16 Classical — all A/B/C/D series + BL series; compatible with pre-sintering shading liquids |
| Geometries | W-98mm · Z-95mm · D-71mm |
| Available Thicknesses | 10 / 12 / 14 / 16 / 18 / 20 / 22 / 25 / 30 mm |
| Indications | Veneers · Inlays/Onlays · 3-unit bridges · Long-span bridges · Anterior & posterior full-contour crowns · Hybrid abutment crowns · Full-arch monolithic restorations |
| Key Feature | One disc for all restorations — eliminates material selection complexity; seamless gradient from strength-optimized dentin to ultra-translucent incisal |
| Sintering | Tension-free sintering process ensures dimensional accuracy across multilayer construction — critical for long-span bridge fit |
| Compatibility | Roland DWX · VHF · Zirkonzahn · IMES-iCore · Sirona CEREC / inLab · Arum · Wieland · UP3D · and all major open-system mills |
3D Multilayer Gradient Profile
← Cervical / Dentin
4Y-TZP · 1200 MPa · 43% T
Incisal →
5Y-TZP · 800 MPa · 49% T
Available VITA Shade Range
All 16 VITA Classical shades available across all three geometries.
A Series
A1
A2
A3
A3.5
A4
B Series
B1
B2
B3
B4
C Series
C1
C2
C3
C4
D Series
D2
D3
D4
BL Series (Bleach)
BL1
BL2
BL3
BL4
Clinical Suitability
Indication Guide
AZR 3D is the most versatile disc in the AZR range — the only one rated highly across all indication types. Its dual-material gradient handles everything from delicate anterior veneers to demanding full-arch long-span frameworks.
Rating:
★★★★★ Not Recommended
★★★★★ Suitable
★★★★★ Highly Recommended
Indication
Clinical Notes
Rating
Veneers
Suitable for veneers. The 5Y-TZP incisal zone (49% translucency) provides the optical depth needed for thin veneer restorations in the anterior zone — one of the strongest veneer performers in the AZR range.
★★★★★
Inlays / Onlays
Excellent for inlays and onlays. The 3D gradient provides natural visual depth even in small restorations — the translucent incisal zone blends naturally with surrounding natural tooth structure.
★★★★★
3-Unit Bridge
Highly recommended for 3-unit bridges. Tension-free sintering and multi-layer structure deliver accurate fit across the span, with natural gradient aesthetics for anterior and posterior cases alike.
★★★★★
Full Contour Crown — Anterior
The highest-rated AZR disc for anterior crowns. Multi-dimensional gradient replicates natural cervical-to-incisal tooth variation, with 49% incisal translucency delivering glass-like enamel effects.
★★★★★
Full Contour Crown — Posterior
Highly recommended for posterior crowns. Dentin-zone 4Y-TZP (1200 MPa) provides sufficient posterior strength while the gradient maintains excellent occlusal translucency for natural appearance.
★★★★★
Hybrid Abutment Crown
Highly recommended for hybrid abutment crowns. The gradient naturally enhances emergence profile aesthetics for implant-supported restorations in both anterior and posterior zones.
★★★★★
Long-Span Bridge
The highest long-span rating in the AZR zirconia range. Tension-free sintering and the 4Y-TZP dentin zone (1200 MPa) provide the structural integrity needed for extended bridge spans where precision fit is critical.
★★★★★
AZR 3D vs Other AZR Products
AZR 3D is the only disc in the AZR lineup rated for both veneers and long-span bridges. If your lab needs one disc that handles the full spectrum of indications, AZR 3D is the choice. For maximum strength frameworks, AZR-O (1350 MPa) remains the preferred option.
USD Pricing
Price List
All prices in USD. Applies to W-98mm, Z-95mm, and D-71mm geometries. Prices are per disc. AZR 3D is our premium 3D multilayer product — priced to reflect the dual-material gradient manufacturing process.
Shipping Policy
Orders over $500 qualify for free international shipping. Orders under $500 are subject to a standard shipping fee based on destination. Estimated delivery: 7–14 business days. Contact us for expedited options.
USD Pricing
Price List
All prices in USD. Applies to W-98mm, Z-95mm, and D-71mm geometries. Prices are per disc. AZR 3D is our premium 3D multilayer product — priced to reflect the dual-material gradient manufacturing process.
Shipping Policy
Orders over $500 qualify for free international shipping. Orders under $500 are subject to a standard shipping fee based on destination. Estimated delivery: 7–14 business days. Contact us for expedited options.
WallaBC Easy Return Policy
At WallaBC, we want you to be fully satisfied with every purchase. We stand behind our products and offer a 90-day hassle-free return policy.
If for any reason you are not completely happy with your order, you may return it within 90 days of receipt for a full refund of the purchase price. Simply contact us at info@wallabconline.com and we will provide a prepaid return shipping label.
Returnable Items
Unused items in original packaging Defective or damaged items.
We cannot accept returns on: Used consumables like brush heads Items that have been worn or used beyond evaluating fit.
To be eligible for a return, items must be in new condition with all original tags and labeling.
Please use proper shipping methods with tracking to prevent damage in transit.
Once we receive your return, we will process it within 7 business days and notify you by email. Approved refunds will be credited back in the original form of payment.
If you have any questions about our returns process, please contact our helpful customer service team.
We want you to shop with confidence on WallaBC.
